Iris EFIS PRO 80 (master)
Click Image for Gallery

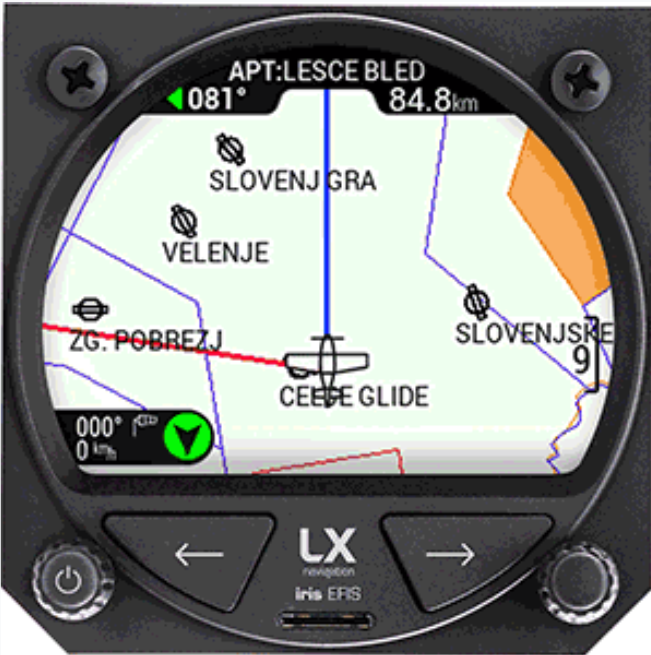

With its intuitive user interface, the iris EFIS PRO is designed according to the highest standards of visibility and ease of use. Its internal backup battery has 3 - 5 hrs of battery life which is only activated if you lose power mid-flight.
EFIS with airport navigation, route navigation, airspace, G-force, logbook and airspace support, wind calculation. Includes backup battery, Voice Module, WiFi, Bluetooth, OAT
Panel Cut-out
- 57 mm / 2.25″
Power and battery
- Power supply: 9 – 30 V DC
- Power consumption: 150 mA @ 12 V DC / 100 mA @ 24V DC
- Battery: Built-in battery (3 hours)
What’s in the box?
- iris device
- power supply connector
- M4 x 6 screws
- CAN BUS cable
- GPS Antenna (optional)
- OAT sensor (optional)
Connectivity
- pressure input(s)
- RJ 45 CAN port
- RJ12 OAT port
- SMA connector for GPS (optional)
- power supply connector
Processor and memory
- LX one chip
